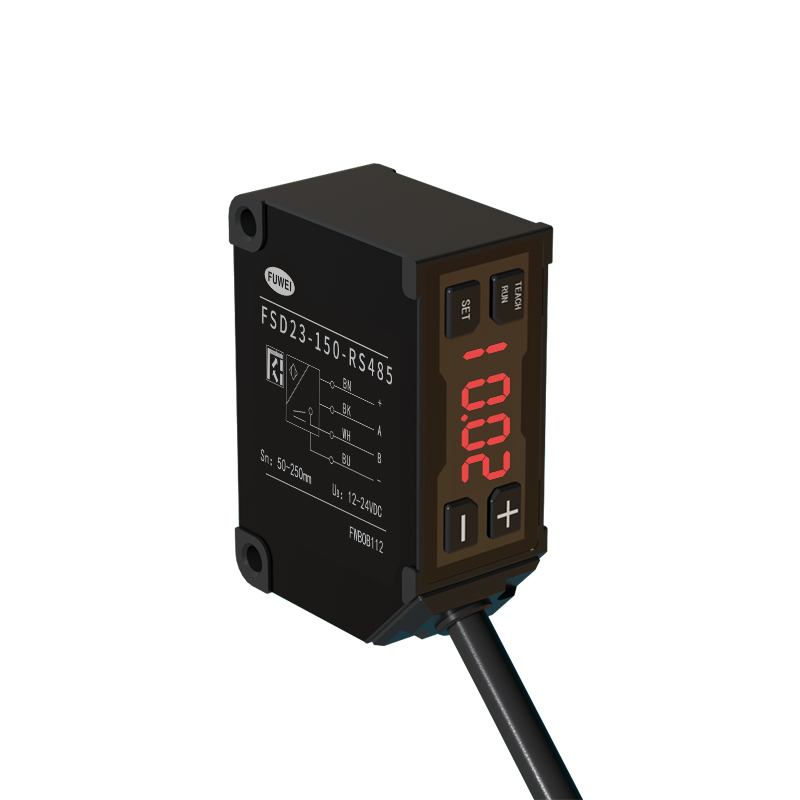

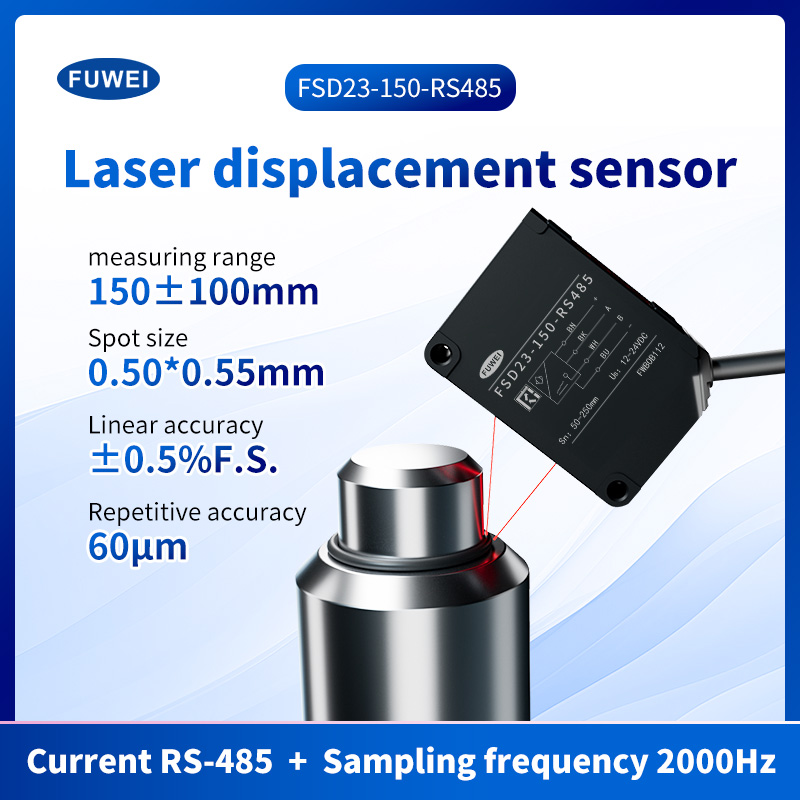

Product Characteristics:
Part number：FSD23-150-RS485
Measurement center distance：35mm
Measurement range：±15mm
Linearity:±0.1%F.S.
Repeatability：6μm
Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.)
Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic
Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω
Protection：IP67
Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation
Specifications:
Analog current
4-20mA
Analog voltage
0-10V

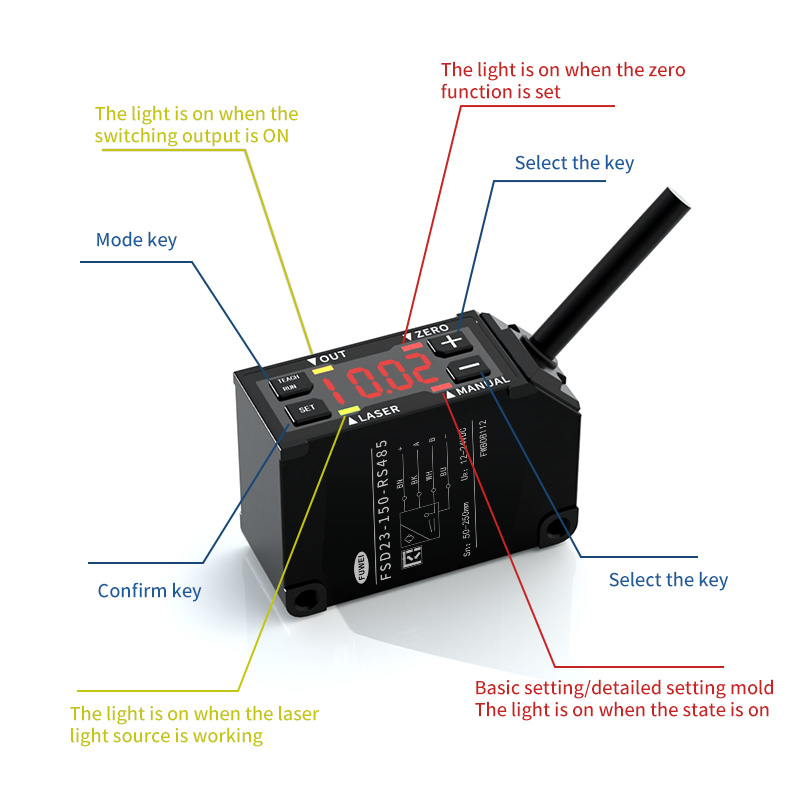

Laser indicator: Green / Zero reset indicator: Red
Output indicator: Orange / Mode indicator: Red
Part number
FSD23-15-AA
FSD23-35-AA
FSD23-100-AA
FSD23-150-AA
FSD23-15-AV
FSD23-35-AV
FSD23-100-AV
FSD23-150-AV

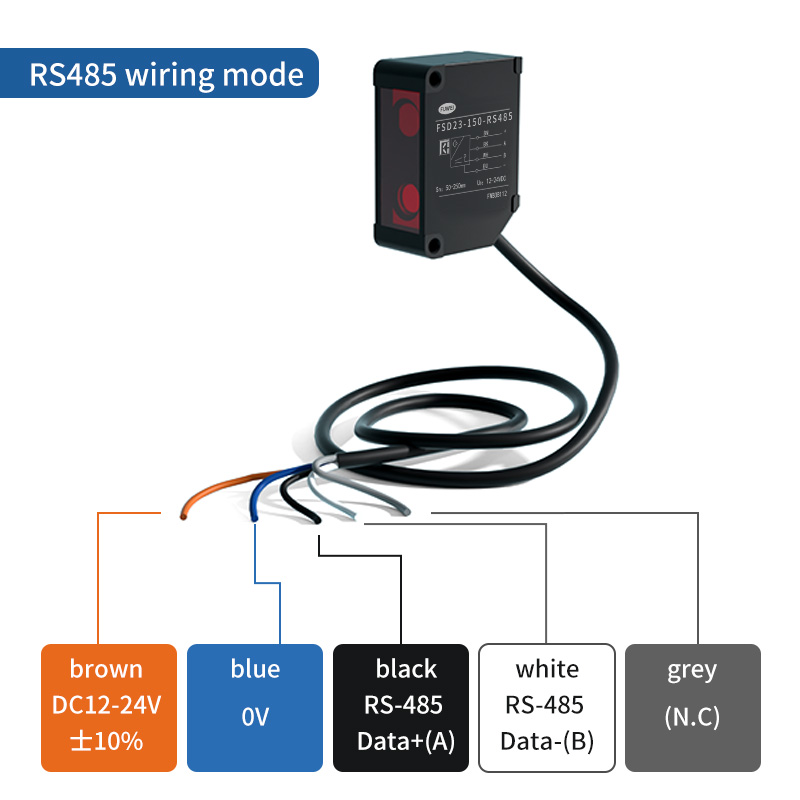

RS-485 communication
FSD23-15-RS485
FSD23-35-RS485
FSD23-100-RS485
/
Cable typers-485 communication
/
/
/
FSD23-150-RS485

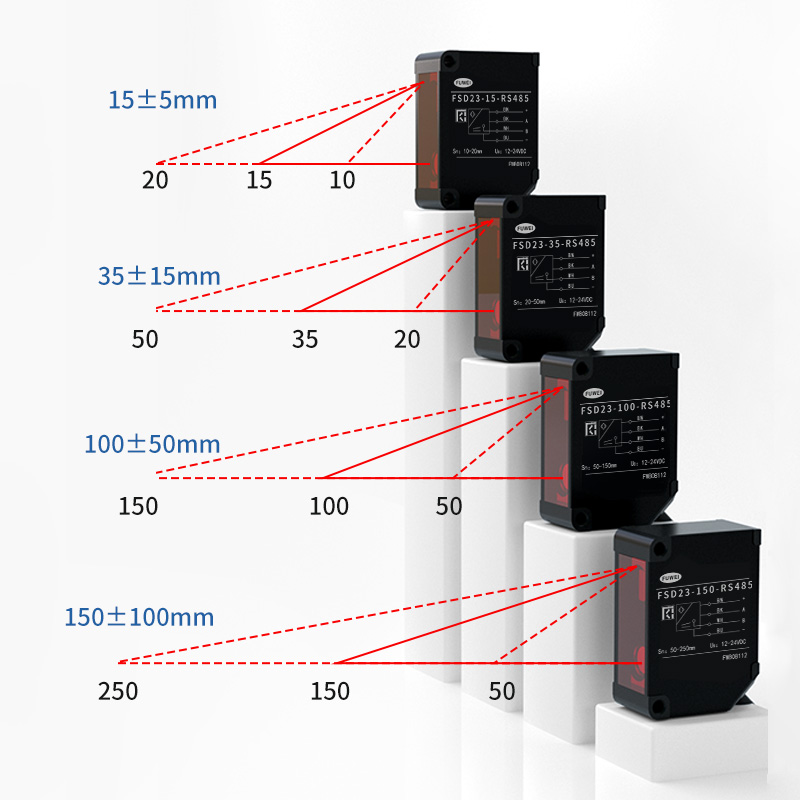

Center of measurement range
15mm
35mm
100mm
150mm
Measurement range
±5mm
±15mm
±50mm
±100mm
Light source
Medium. Wavelength
Red laser Diode (wave length 650nm)
Max. output power
390 μW
1mW
Laser class
IEC/JIS
Class1
Class2
FDA
CLASS I
CLASS II
Spot size*1
0.5*0.7mm
0.45*0.80mm
0.6*0.7mm
0.5*0.55mm
Linearity
±0.1% F.S.
±0.1% F.S.
±0.1% F.S.
±0.5% F.S.
Repeatability*2
1μm
6μm
20μm
60μm
Sampling period
500μs / 1000μs / 2000μs / 4000μs / AUTO
Temperature drift (typical value)
±0.02% F.S./⁰C
±0.02% F.S./⁰C
±0.05% F.S./⁰C
±0.08% F.S./⁰C
Indicator
MF (multiple function ) Input
Laser OFF, Teaching, Sample & Hold, One shot, Zero reset
Control Output
NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.)
Current consumption
70mA max.
Analog current
Output 4-20mA, allowable load resistance below 300Ω
Analog voltage
Output 0-10V , output impedance 100Ω
Protection circuit
Reverse connection protection, Over current protection
Protection category
IP67 including connection part
Operating Temp./Humid.
-10~50⁰C / 35 ~ 85% RH without freasing or condensation
Storage Temp./Humid.
-20 ~ 60⁰C / 35 ~85%/RH
Ambient illuminance
Sun light: 20,000 lx max. / Incandescent lamp: 3,000 lx max.
Vibration resistence
10 ~ 55Hz, Double amplitude 1.5mm, X,Y,Z for 2 hours
Shock resistence
500mm/s2 ( approx. 50G) X,Y,Z 3 times each
Material
Aluminum
Weight
Approx. 60g
The specifications are based on the condition unless otherwise designated:Ambient temperature:23⁰C,
Supply voltage: 24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic
*1 Defined with center strength 1/e2(13.5%)at the center. There may be leak light other than the specified spot size. The sensor may
be affected when there is a highly reflective object close to the detection area.
*2 512 averaging time

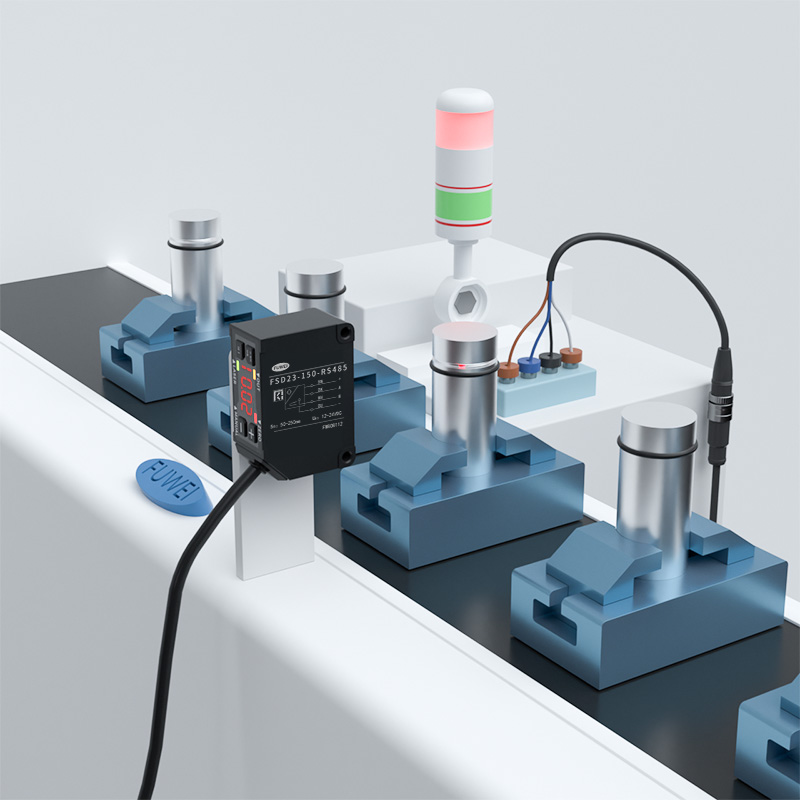

Small stature and strong functionality
A variety of core functional benefits for your use
