Laserförskjutning med hög precision och distanssensor-FLR-serie

Laserförskjutningssensor FLR-100-AA Mätområde: 150-1000mm Utgångsläge: med switchmängd och aktuell 4-20 mA Linearitetsnoggrannhet: Standard: ± 0,6% F.S. Upplösning: 50um vid 150 mm; 2mm vid 1000 mm Spotstorlek: φ3mm vid 1000 mm Svarstid ： 2ms/16ms/40ms kan ställas in

Laser Displacement Sensor Measuring range: 150-1000mm Output mode: with switching and current 4-20mA Linearity accuracy: ±0.3% F.S. (150-450mm); ±0.6% F.S. (450-1000mm) Resolution: 50um at 150mm; 2mm at 1000mm Spot size: Φ3mm at 1000mm Response time: 2ms/16ms/40ms settable

0,01mm 80-500mm Analog4-20MA Lasersensorförskjutningsavstånd Sensor Integrerad mätning och kontroll av digital displaylaserförskjutningssensor Mätning av 30-1000 mm med en mängd olika intervall att välja mellan Bekväm operationspanelkonfiguration OLED Digital Display Med analog och RS485 -kommunikation (Support Modbus Protocol) Kommunikation flera utgångar Linjär noggrannhet upp till +0,1% F.S. Upplösning upp till 5um

Displacement Distance Sensor Integrated measurement and control of digital display laser displacement sensor Measuring range of 30-1000mm with a variety of ranges to choose from Convenient operation panel configuration OLED digital display With analog and RS485 communication (support ModBus protocol) communication multiple outputs Linear accuracy up to +0.1% F.S. Resolution up to 5um

FLR-10-RS485 -M Laser Displacement Sensor Integrated measurement and control of digital display laser displacement sensor Measuring range of 30-1000mm with a variety of ranges to choose from Convenient operation panel configuration OLED digital display With analog and RS485 communication (support ModBus protocol) communication multiple outputs Linearity accuracy up to ± 0.1% F.S. Resolution up to 5um

FLR-10-RS485 Laser Displacement Sensor Measuring range: 30-100mm Output mode: with switch quantity and RS485 communication (support ModBus protocol) Linearity accuracy: standard type: ±0.3% F.S. (30-100mm); high precision type: ±0.1% F.S. (30-100mm) Repeatability: 10um at 30mm; 0.1mm at 100mm Resolution: 5um at 30mm; 50u m at 100mm Spot size: 1*3mm at 100mm Response time: 2ms / 16ms / 40ms can be set up Ambient light resistance: incandescent light ≥ 3,000lux Operation panel: OLED digital display Temperature drift: ±0.02%F.S./°C

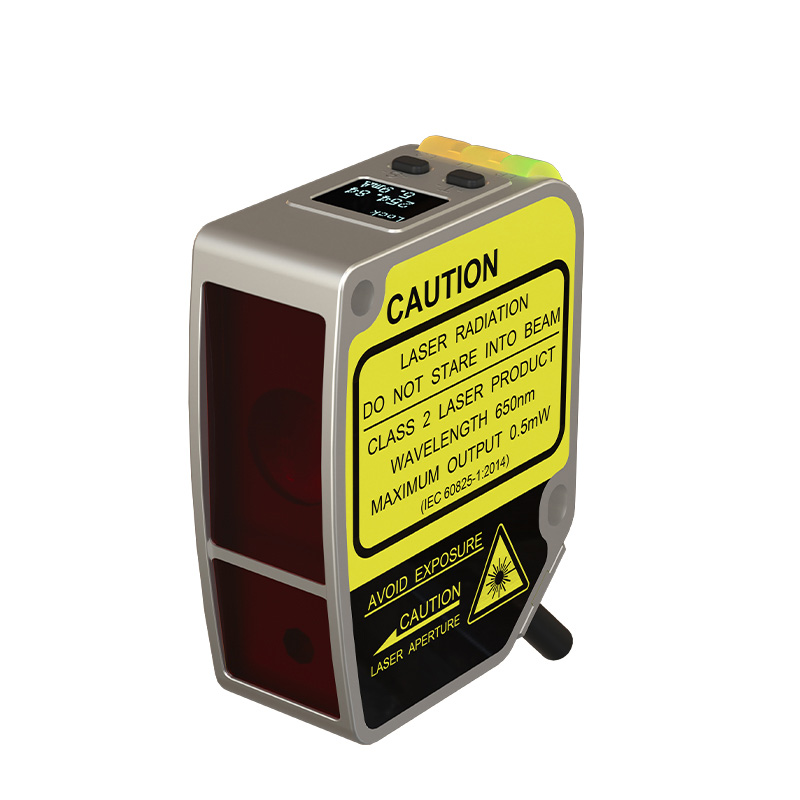

FLR-10-AA 30-100mm Analog4-20mA Laser Displacement Sensor Integrated measurement and control of digital display laser displacement sensor Measuring range of 30-1000mm with a variety of ranges to choose from Convenient operation panel configuration OLED digital display With analog and RS485 communication (support ModBus protocol) communication multiple outputs Linear accuracy up to +0.1% F.S. Resolution up to 5um

FLR-10-AA-M Laser Displacement Distance Sensor Analog 4-20mA Integrated measurement and control of digital display laser displacement sensor Measuring range of 30-1000mm with a variety of ranges to choose from Convenient operation panel configuration OLED digital display With analog and RS485 communication (support ModBus protocol) communication multiple outputs Linear accuracy up to +0.1% F.S. Resolution up to 5um
